Implementation of Artificial Neural Networks Using a Hardware Description Language

Abstract

This paper presents the idea of implementing artificial neural networks in hardware and the issues involved to get an efficient design. The discussion will start with a short introduction to neural networks, the algorithms involved, and finally how to put the algorithm in the context of hardware. In order to put this problem in the context of a software engineering exercise the programming language called VHDL will be used.

1. Introduction

Machine learning has inspired several methods for solving problems in the field of artificial intelligence. For instance, artificial neural networks were developed as an attempt to model how the brain works on a computer by learning how to get to the correct answer through experience. So far there have been surprising results in applications like image analysis, hand writing recognition, and predicting bank transactions that are more likely to be made by stolen credit cards [6, 7]. The major inspiration is the fact that the building block of a neural network, both biological and artificial, is an information-processing unit that when used in large numbers has significant processing power [6].

Functional units working together in parallel are the main goal behind research and development for artificial neural networks [6, 7]. But what if we can improve upon the idea of parallel processing with respect to ANNs by bringing the implementation down to the hardware level [7]? With advances in technology it is possible while retaining a software engineering emphasis using a hardware description language [1, 7]. A hardware description language is a programming language that is used to describe digital systems. This type of language is useful for describing the components of a system, simulating hardware on a computer, and synthesizing the hardware. The language that will be discussed is VHISIC (Very High Speed Integrated Circuits) Hardware Description Language (VHDL) [1]. By using VHDL the architecture of an ANN can be described and eventually implemented as hardware on an FPGA. Since resources on FPGAs are an issue we will emphasize topics like data representation and arithmetic [5].

In the following sections we will show possible ways to describe the architecture of an artificial neural network using VHDL. First a discussion on ANNs in general is in order so that the problems behind implementation in hardware can be better understood. We will first talk about the neuron, the basic building block any neural network, and how a certain organization of these neurons in layers gives rise to the implementations of a very commonly used algorithm called the back propagation algorithm. The purpose of using this algorithm is to train a network with one or more hidden layers called the perceptron.

After setting the framework for the back propagation algorithm we will discuss the hardware and software side of implementing an ANN. The advantages and disadvantages of implementation in hardware and software will be discussed here along with why FPGAs are more favorable than other electronic devices. Then VHDL will be introduced in more detail, how it is different from other programming languages, and how syntax dictates how the ANNs are mapped into hardware with respect to specific steps in the back propagation algorithm.

2. The Artificial Neural Network

There are several architectures proposed for ANNs that are based on how we believe the human brain works. In a biological neural network, the basic building block is the neuron which has connections with other neurons called synapses [6]. Approximately 100 billion of these neurons form the human brain which can process information in parallel and distributed manner where the information is believed to be stored in the connections between neurons. In an ANN these connections are represented as weights which express the strength of the connections between neurons with respect to learning and experience [7].

Through these connections a neuron accepts a set of input signals. In a biological neural network these input signals are chemicals that travel to the cell body as an action potential that has to reach the neuron’s threshold in order to be transmitted as output. An artificial neuron also receives an input but in the form of either input data or output from other neurons that is used by an activation function to determine if a threshold or activation level is reached. The input signals, weights, and activation function as all that the simplest type of neural network needs to function [6]. This simple neural network is called the perceptron and is the basic building block of larger networks that are referred to as multilayer neural networks or multilayer perceptron (MLP) [4, 5, 6, 7, 8].

2.1 The Perceptron

The perceptron can be described as the simplest neural network possible. It consists of a set of input signals X where X={x₁,x₂,…,x_n}, synapses that are represented as weights W such that W={w₁,w₂ ,…,w_n}, a linear combiner whose output is

where S is the sum of the i^th input signal x_i multiplied by the ith weight w_i, n number of inputs, and 𝜃 is the threshold. The neuron uses the sigmoid function as its activation function written as

where 𝑌 denotes the neuron's output. Since we are interested in the back-propagation algorithm for the multilayer perceptron the sigmoid function is used. When the entire network consists of only one perceptron the step function is used [6].

2.2 Multilayer Perceptron

A Multilayer perceptron is a neural network architecture that consist of layers of perceptrons. It is a feedforward neural network which is an ANN with an input layer, one or more hidden layers, and an output layer where signals get accepted at the input layer and are propagated forward one layer at a time [6, 7].

The function of the input layer is to receive data as input and pass it along to neurons in the hidden layer. In general, the input layer does not have to do any calculations while the hidden and output layers consist of computational neurons. The back-propagation algorithm uses these layers for the feedforward and weight training stage where the weights for each neuron are adjusted.

The back-propagation algorithm consists of four steps. The first step is to randomly initialize values for the weights and threshold level for each neuron. The second step is to activate the network by providing inputs to the network and using those inputs for calculating the outputs for the neurons in the hidden layer(s) and output layer. In the third step weight training occurs. This is where error gradient, weight corrections, and updating of the weights for each level occur. The error gradient is a value that is determined by an error signal multiplied by the derivative of the activation function.

Thus, for error signals e₁, e₂, ..., e_l, where l denotes the index for neurons in the output layer, the output of neuron k is calculated by the following:

where p is the number of the iteration and y_d,k(P) is the output that we want and y_k(P) is the sigmoid function where x=X_k(P). We also need to use the learning rule to apply the weight corrections. The learning rule is

where 𝑤𝑗𝑘 is the weight that will be updated between the output and hidden layers and ∆𝑤𝑗𝑘(𝑝) is the function for the weight correction. Let 𝛿𝑘(𝑝) be the error gradient and 𝛼 as the error gradient. Now the weight correction is defined as

and the error gradient is

Step four is where the value for the iteration 𝑝 is incremented followed by going back to step two. We repeat this process until the desired output is achieved [6].

3 Implementation

Our goal here is to discuss the advantages of implementing an artificial neural network and how to use VHDL to describe the ANN architecture so that resources on an FPGA is used efficiently. Issues that we will consider are hardware vs. software implementation, parallelism, and using VHDL to describe the ANN.

3.1 Hardware vs. Software

When considering how to implement an artificial neural network it is important to realize that there are advantages and disadvantages to both hardware and software. Software is great for simulations and research with respect to new algorithms [4]. But hardware implementation has the advantage of parallelism similar to a biological neural network that can’t be achieved with software. This parallelism is limited but it can be achieved by having neurons on a particular layer doing calculations simultaneously, running different training sessions in parallel, and pipelining [4, 7].

When neurons in the same layer performing calculations at the same time, called node parallelism, is where the highest level of parallelism is achieved when the ANN is implemented on an FPGA [7]. This is because FPGAs are divided into configurable logic blocks (CLBs) which are cells of logic resources that can operate in parallel. Each CLB consist of look-up tables (LUTs), multiplexers, arithmetic gates, and storage elements that can be used for flip-flops and latches [7, 9].

The architecture of an FPGA provides these advantages but only if proper design practices are used when describing the hardware with VHDL code. The way you describe the hardware is important because FPGAs have limited space. Therefore, when considering how to implement an ANN the available hardware and the precision used for the arithmetic must be taken into account [4].

3.2 Describing an Artificial Neural Network with VHD

When working with VHDL it is important to consider that the statements in the source code is not executed in a sequential manner. Instead the source code is a combination of concurrent and sequential statements. In general statements are executed concurrently, at the same time, except for subroutines called processes whose statements are executed sequentially. VHDL also has something called signal assignment which is similar to variable assignments except that signals are not updated immediately [1].

Now we will look at the description of the perceptron that was described earlier with respect to VHDL. The perceptron has to accept inputs, be assigned weights and threshold values, the weights times the inputs, activation function, and output. All of this has to be described in a way with the intention of being synthesized onto a FPGA. First the weights times the sum, called the weighted sum of the inputs, should deserve some special attention [6].

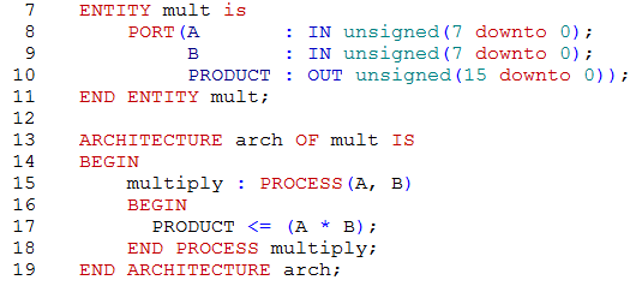

Multiplication in hardware is very tricky since it can consume a lot of hardware area. The main issues are how to describe the multiplication and the representation of data [5, 7]. The following code segment is an example of straight forward multiplication.

In this example we have all the basic parts of a VHDL file. The key word “ENTITY” represents the inputs and outputs for what is being described and “ARCHITECTURE” contains signal and variable declarations along with subroutines One type of subroutine is called the ‘PROCESS’. The process contains a sensitivity list which are the inputs and when an input changes value the process begins execution in a sequential manner between the ‘BEGIN’ and ‘END’ keywords. But all other statements within the ‘ARCHITECTURE’ execute concurrently [1]. In this particular example the process contains a statement that does multiplication. Since multiplication is the operation that takes up the most resources other approaches should be considered [3]. Instead other methods like matrix multiplication are suggested where you use vectors in the form of a two dimensional array for the synapses of each layer [7].

The values we are multiplying also need to be represented with a reasonable number of bits. Some studies have suggested that weights that are 16 bits and 8 bits for the inputs of activation function have produced good results since precision and resources have to be taken into account [7]. Others argue that the input should be 16 bits and the output should also be the same size [5]. The precision vs. resources issue is important since multiplication is performed three times for each neuron.

Since we are working in hardware VHDL provides us with data types that help us represent an array of bits. One particular type is the standard logic vector which is shown in figure 2 [1].

Here we have a standard logic vector for inputs that is 16 bits wide and is initialized to ‘0’ using a notation for hexadecimal. Standard logic vectors may be used to implement matrix multiplication using nested for loops [7]. At the innermost loop a method of pipelining the multiplication is possible in order to minimize the use of hardware resources. With inputs and weights that are 16 bits may be stored in registers during different stages of calculation [3].

For the case of calculating the net weighted sum, the inputs that describe how we do multiplication can also be assumed to be the inputs for the description of a perceptron. The inputs along with the output of the neuron will be specified in the port map for the entity [2]. The output will most likely be the results from the activation function.

The sigmoid activation function can be implemented by using what is build right into the FPGA. Many FPGAs have look-up tables built in that can be used to approximate the output to the activation function but there is the possibility of taking up a lot of space on the FPGA [4, 7]. Another proposed solution is to modify the sigmoid function so that it can be represented as a step function. The benefits are a simpler method of doing multiplication by shifting bits so less hardware is required [4].

Conclusion

We have shown that there are some benefits for implementing artificial neural networks in hardware when taking methods of parallelism and hardware resource saving techniques into consideration. So by building up to the implementation by first introducing the concepts of an artificial neural network we have realized that there are several ways to define our architecture starting with the building blocks. For example, the thought process behind the multiplication for the net weighted sum was discussed in detail. The use of multiplication was disused in an effort to stress that multiplication takes up a lot of hardware resources. Without careful planning when figuring out the best way to do multiplication it may be very difficult to fit an entire artificial network onto a FPGA.

With improvements in technology the implementation of artificial neural networks in hardware will become much easier for larger network. But caution should be considered when testing performance with poor benchmarks. One instance occurred when comparing performance was observed with the hardware implementation outperforming the software equivalent. But the ANN was implemented in MATLAB which does not run directly on hardware [7]. Otherwise hardware should outperform the software and can be accomplished quite easily using VHDL while not losing sight of the software engineering aspect.

Appendix

It is important to realize that computer scientists can work with languages that are used to describe hardware to solve problems that are relative to their profession. Besides using VHDL with the sole purpose of implementing hardware we can also simulate the design for research purposes. For instance it may be possible to come up with a description of the back-propagation algorithm that is better suited for implementation in hardware.

But more research and experimentation may have to be done to see if the efficiency of the results of training is equivalent to that in software since data representation with respect to precision is important. The industrial applications should be similar with the possibility of running and training the network in a shorter amount of time. Since we are using FPGAs the network is reconfigurable so you can text the performance of the hardware without having to wait a long time for a manufacturer to design and implement an artificial neural network on a single purpose chip.

Ethical issues will be important depending on who is using the hardware implementation and on their intentions. If testing is not performed properly then a faulty design may have an impact on projects or yield bad results for research. But if caught early enough any faults in the design can be easily fixed while the most time lost may be from making sure the timing and propagation of the signals is correct.

The timing issue is what makes VHDL hard since we want to achieve the most available parallelism as possible while avoiding issues like race conditions. Thus, computer programmers need to be familiar with these issues so that they do not forget that they are using a programming language that may seem very familiar to other languages.
